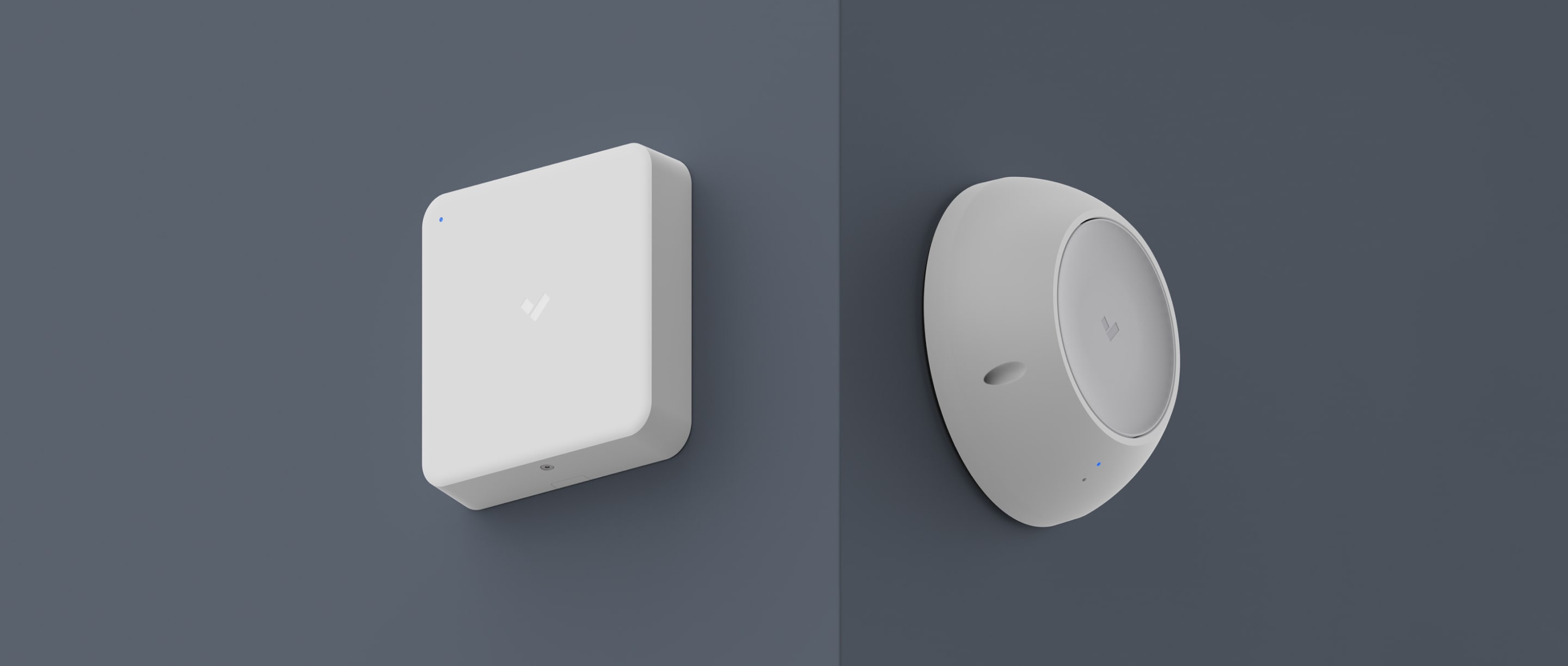

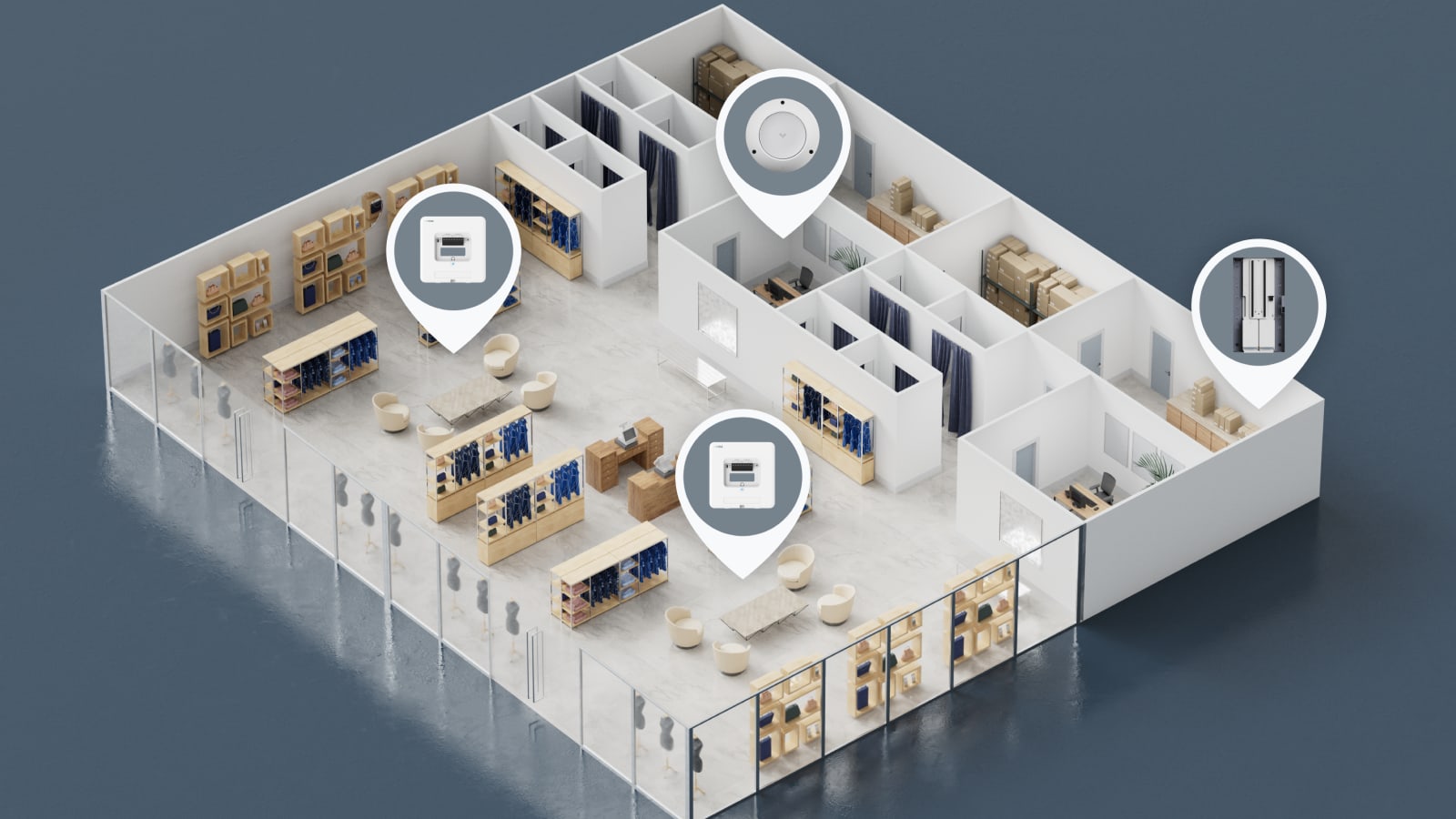

Extend wireless sensor coverage across sites of any size with the WH52 Wireless Hub and the WH32 Wireless Repeater.
Key features
Support sensors at a distance from the alarm panel with the WH52 wireless hub, which can be deployed anywhere with an ethernet drop. Reach areas with poor signal by extending the range of any hub with WH32 wireless repeaters.
Always included

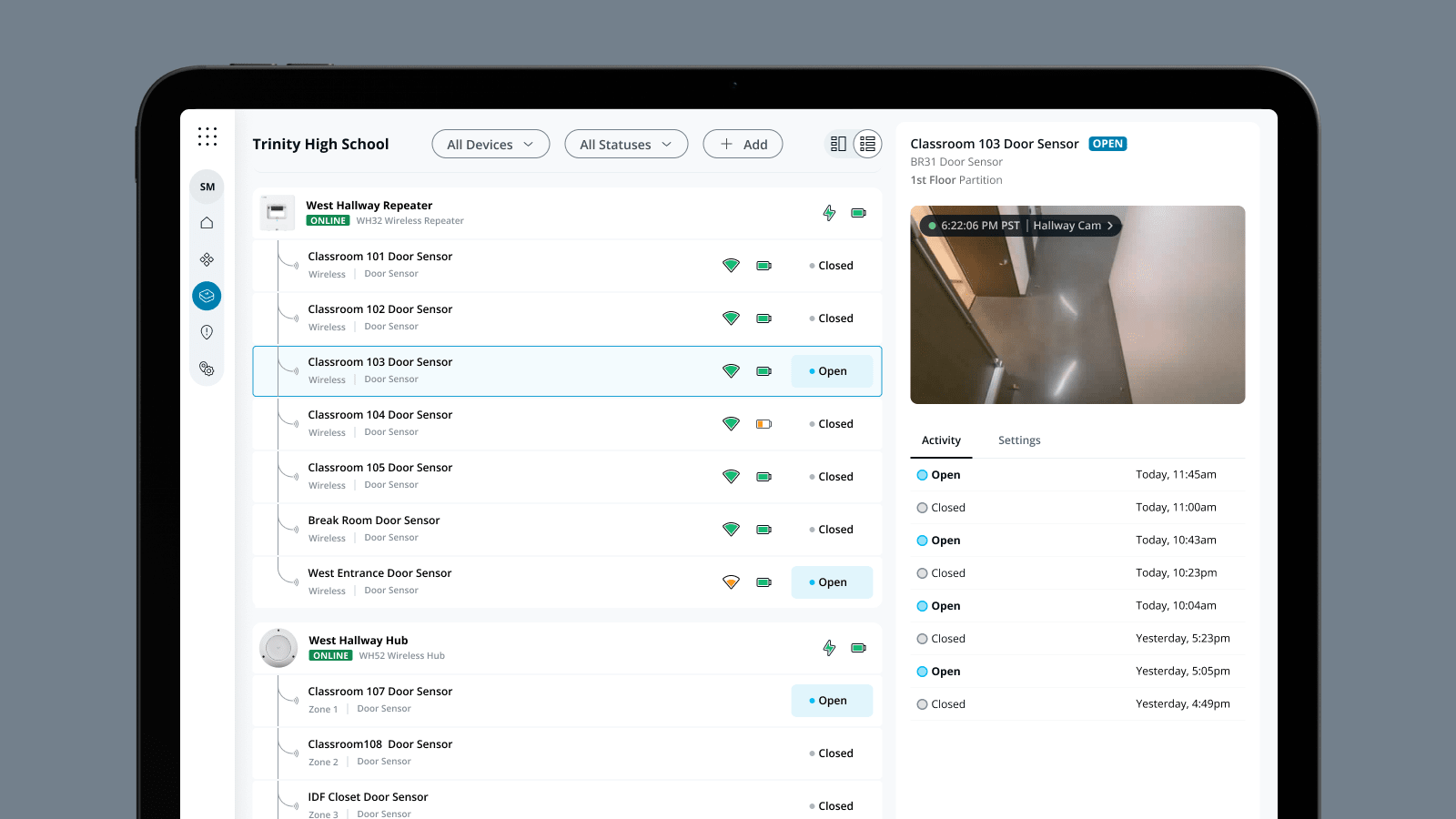

Cloud management via Command
10-year warranty
Automatic firmware updates
Alerts for offline devices
Product Specifications
WH32 Wireless Repeater
Power and network
Power Consumption
0.18W standby, 27W maximum
(5mA - 750mA current draw)
Power Input
Repeater mode: 10-36V DC Terminal Block (ACC-WA-30W-NA Wall Adapter sold separately)
Hub mode: 10-36V DC via RS485
Backup Battery (Internal)
1200 mAh
24 hours of backup with typical use
Uplink
Repeater mode: VLink sub-GHz transceiver
(Repeater must be within range of a VLink hub. Verkada recommends no more than 6 repeaters per hub.)
Hub mode: RS485 input
Wireless Communication
VLink sub-GHz transceiver
VLink Wireless Range
Open field with line of sight: 300 ft / 90 m
Expect reduced range indoors, depending on environment
General
Dimensions
Height: 5.5" (14.0 cm)
Width: 5.5" (14.0 cm)
Depth: 1.3" (3.4 cm)
Weight
1.25 lb (0.56 kg)
Operating Temperature and Humidity
32 to 122° F (0 to 50° C)
0-90% RH non-condensing
Tamper Detection
Yes
Warranty
10 years
Certifications
FCC, IC, RCM, CE, UL/cUL/IEC 62368-1
Installation
Included Accessories
Mount plate, T10 Security Torx screwdriver, 4x wall screws, 4x wall anchors
Mounting Options
Wall or ceiling mount
