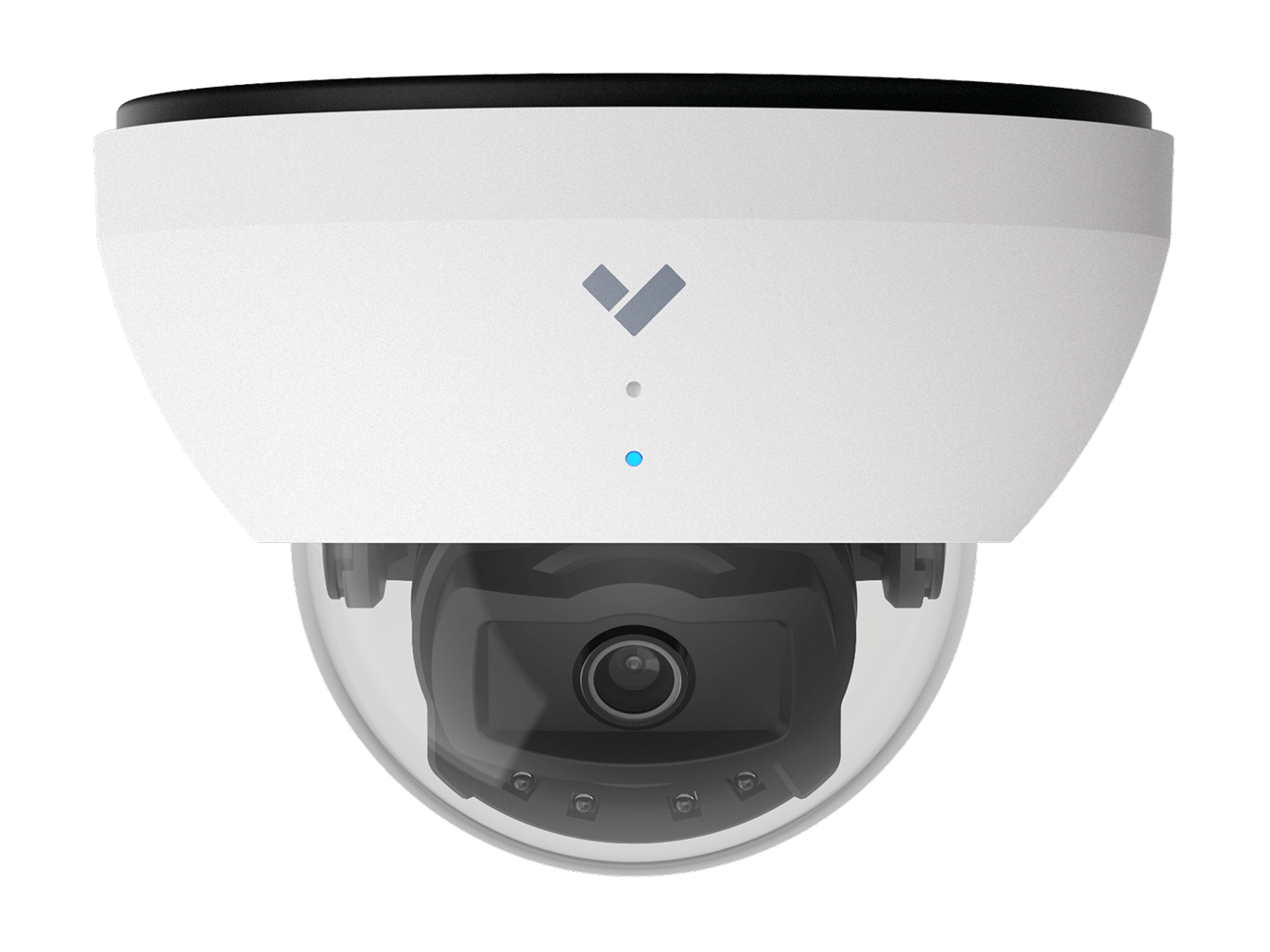

CD22 Dome

Capture every detail with 3MP resolution on our indoor Dome.
  • 3 MP
    Image Resolution
  • 78°
    Horizontal FoV (After LDC)
  • 10 M
    IR Range
Start a Free Trial

Product Specifications

Download PDF
Full Install Guide

Camera features

  • Image Sensor
    1 / 2.8″ Progressive CMOS
  • Sensor Resolution1
    3MP (2048 x 1536)
  • Lens Type
    Fixed
  • Focal Length
    2.8mm
  • Aperture
    F1.6
  • Iris
    Fixed
  • Field of View (after LDC2)
    Horizontal: 97° (78°)
    Vertical: 71° (63°)
    Diagonal: 128° (91°)
  • Sensor Movement
    Tilt: 60°
    Pan: 355°
    Rotation: 180°
  • Shutter Speed
    1 / 30 sec. to 1 / 10,000 sec.
  • Day/Night
    IR-cut filter for day and night function
  • IR Cut Filter
    Yes
  • IR Range
    10m / 33ft
  • Minimum Illumination
    0.009 lux @ F1.9 (Color)
    0 lux with IR Illuminators on
  • Onboard Storage
    Capacity: From 256GB to 768GB
    Card: MicroSD, SDXC
  • CPU
    Ambarella CV25S88

Standard video settings

  • Compression
    H.265, H.264
  • Frame Rate4
    24fps
  • Live Streaming Settings
    High quality (HQ): Up to 3,000 Kbps (default)
    Standard quality (SQ): Up to 600 Kbps
  • Historical Video Settings
    Adaptive quality1

Standard audio settings

  • Audio
    Not Supported

Power and network

  • Power Input3
    With IR: IEEE 802.3af Type 1 PoE
    Without IR: IEEE 802.3af Type 1 PoE
    Extended temperature range: N/A
  • Power Consumption3
    With IR: 37-57V, 0.23-0.15A, 8.59W
    Without IR: 37-57V, 0.11-0.07A, 4.25W
    Extended temperature range: N/A
  • Connectivity
    RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
  • RTSP
    RTSP 1.0
    RFC 2326
    Max concurrent streams: 2
    Audio support: Yes

General

  • Operating Temperature
    -10°C to 50°C / 14°F to 122°F
  • Humidity
    0 to 90%
  • Certifications
    For hardware certification information, please visit verkada.com/compliance
  • LED Indicator
    System power and status indicator
  • Warranty
    5 Years
  • Included Accessories
    Setup guide, T10 security torx screwdriver, screw pack, mounting template

Mechanical

  • Weight
    Camera: 608g / 21.45oz
    Mountplate: 140g / 4.94oz
  • Dimensions
    Ø: 146mm / 5.75in, H: 104.3mm / 4.11in with mount plate
    Ø: 146mm / 5.75in, H: 99.8mm / 3.93in without mount plate
  • Body
    Aluminum, plastic dome trim

Software capabilities

  • Alerts
    Camera status, motion detection, people detection, vehicle detection, crowd detection, line-crossing detection, loitering detection
  • Streaming and storage
    Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
  • People analytics
    Motion search, trajectory analysis
  • Sharing and privacy
    Live Links, live face blur, privacy regions, audit log
  • Vehicle analytics
    Motion search, trajectory analysis

1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf

2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.

3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.

4 Frame rate can be adjusted by support.

Accessory List

Download PDF

ACC-MNT-ARM-1

Arm Mount

Wall mounted extender arm with built in 1.5” female NPT thread.

ACC-MNT-8

Pendant Cap Mount Kit

Threaded cap that attaches to the rear of a camera.

ACC-MNT-3

Wall Mounted L-Shaped Bracket Kit

Compact bracket for mounting camera perpendicular to wall.

ACC-MNT-8

Pendant Cap Mount Kit

Threaded cap that attaches to the rear of a camera.

ACC-MNT-POLE-1

Pole Mount

For mounting cameras to circular poles 2" to 6" in diameter.

ACC-MNT-POLE-1

Pole Mount

For mounting cameras to circular poles 2" to 6" in diameter.

ACC-MNT-ARM-1

Arm Mount

Wall mounted extender arm with built in 1.5” female NPT thread.

ACC-MNT-8

Pendant Cap Mount Kit

Threaded cap that attaches to the rear of a camera.

ACC-MNT-CORNER-1

Corner Mount

Mount for installing cameras and accessories to external corners.

ACC-MNT-CORNER-1

Corner Mount

Mount for installing cameras and accessories to external corners.

ACC-MNT-ARM-1

Arm Mount

Wall mounted extender arm with built in 1.5” female NPT thread.

ACC-MNT-8

Pendant Cap Mount Kit

Threaded cap that attaches to the rear of a camera.

ACC-MNT-REC-1

Recess Mount

For mounting indoor dome cameras flush in ceilings up to 50mm thick.

ACC-MNT-CLIP-1

Tile Clip

For mounting indoor Dome, Mini and Fisheye cameras to commercial ceiling tile rails from 9/16" to 15/16" wide without the requirement to drill. Customers may still wish to drill a hole to properly conceal the cable.
