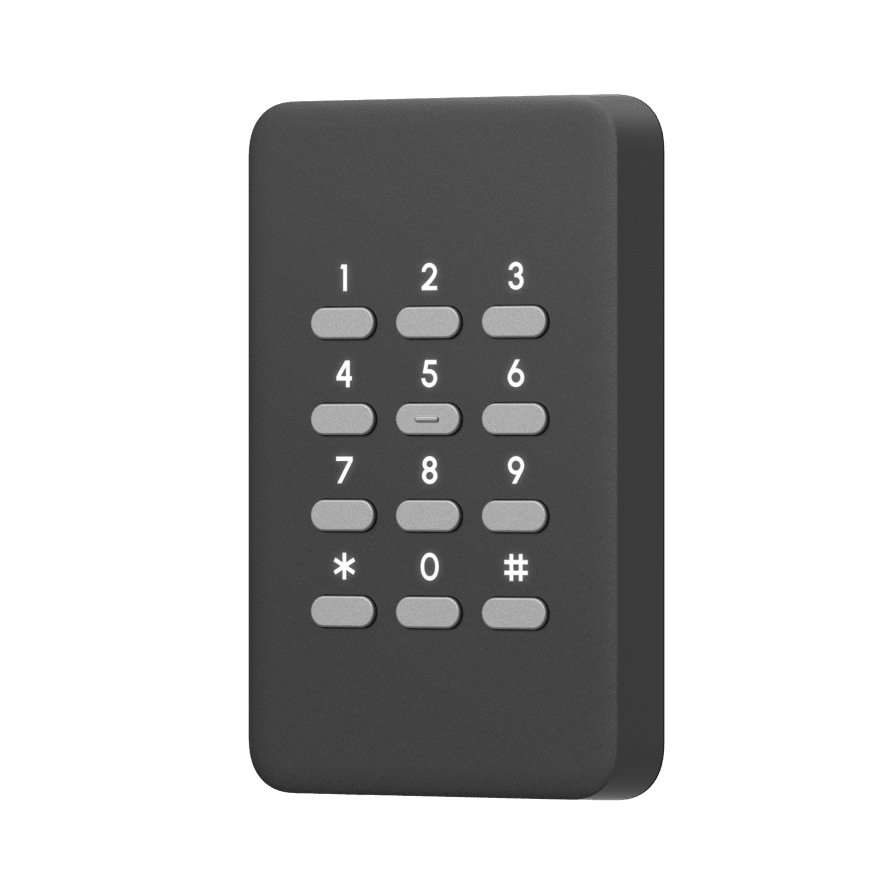

AD64-G Door Reader
Government-grade, TAA & FY2019 NDAA compliant multi-technology door reader that supports various credential types.
LF | HF | NFC
BLE | PIN | 2FA
BLE | PIN | 2FA
Credentials Supported
PIV
Cards Supported
OSDP v2
Secure Channel
IP65 & IK08
Rated
Power and rating
Power consumption
12V, 250mA max
Rating
IP65, IK08
Compatibility
Controller compatibility
Requires an RS-485 connection to a Verkada access controller or intercom
Low frequency card compatibility
125 KHz Proximity Cards
High frequency card compatibility
Verkada DESFire EV3 (card or fob), MIFARE DESFire card serial number
Mobile credential compatibility
Verkada Pass app (BLE)
PIV card compatibility
Currently supports non-PKI FASC-N reads
Compliance and availability
Availability
US, CAN, AUS, NZ, Japan, EU
Compliance & safety
For hardware certification information, please visit verkada.com/compliance
General
Mullion dimensions
Height: 5.2” (13.2 cm)
Width: 3.2” (8.1 cm)
Depth: 0.9” (2.3 cm)
Width: 3.2” (8.1 cm)
Depth: 0.9” (2.3 cm)
Weight
0.47 lb (0.2 kg)
Operating temperature
-40 to 149° F (-40 to 65° C)
5-90% RH non-condensing
5-90% RH non-condensing
Included accessories
Single gang mounting plate, T10 screwdriver, 2 wall mount screws, 2 M3 machine screws
Mounting options
Single gang
Wiring
Wire color
Red
Black
White
Green
Silver
Abbreviation
+12V
GND
A
B
Drain
Name
+12V IN
Ground
RS485-A
RS485-B
Drain Wire
